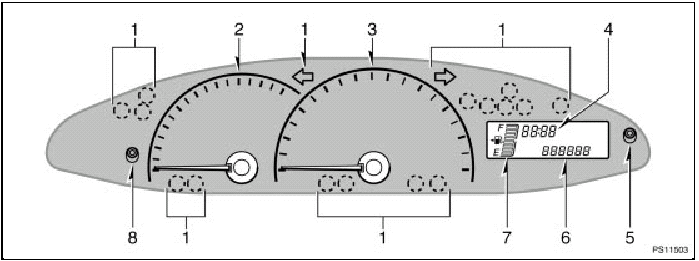

With tachometer

Instrument cluster overview
Instrument cluster overview

1. Service reminder indicators and indicator lights
2. Tachometer
3. Speedometer
4. Clock
5. Clock reset knob
6. Odometer and two trip meters
7. Fuel gauge
8. Trip meter reset knob

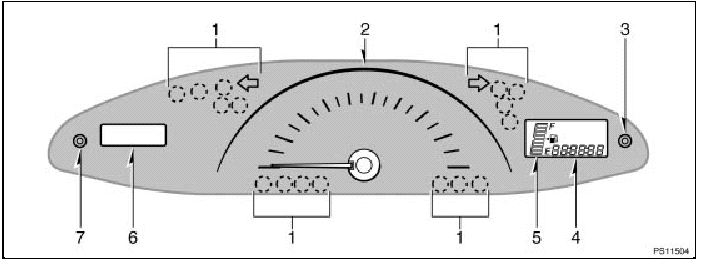

Without tachometer

Instrument cluster overview
Instrument cluster overview

1. Service reminder indicators and indicator lights
2. Speedometer
3. Trip meter reset knob
4. Odometer and two trip meters
5. Fuel gauge
6. Clock
7. Clock reset knob

    Instrument panel overview
    Instrument panel overview 1. Window lock switch 2. Cup holders 3. Side vents 4. Engine immobilizer/theft deterrent system indicator light 5. Auxiliary boxes 6. Instrument cluster 7. Ce ...

    Indicator symbols on the instrument panel
    Brake system warning light*1 Driver’s seat belt reminder light*1 Front passenger’s seat belt reminder light*1 Charging system warning light*1 ...
